Name: DekoRRa Enclosure Model 302 48"L x 17"W x 27.5"H
Brand: DEKORRA
SKU: DekoRRa Enclosure 302 48"L x 17"W x 2-302-B
Price: 525.0 USD
Availability: InStock

DekoRRa Enclosure Model 302 48"L x 17"W x 27.5"H

$ 956.00 $ 525.00 Save $ 431.00

Size

302-BG-C1 48"L x 17"W x 27.5"H

302-BG-C2 48"L x 17"W x 27.5"H

302-BG-C3 48"L x 17"W x 27.5"H

302-GT-C1 48"L x 17"W x 27.5"H

302-GT-C2 48"L x 17"W x 27.5"H

302-GT-C3 48"L x 17"W x 27.5"H

In stock, ready to ship
Inventory on the way

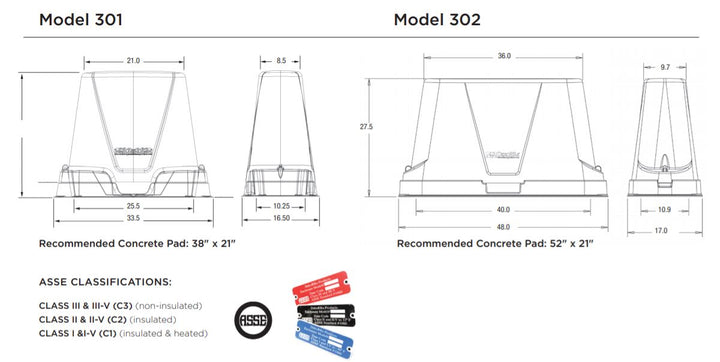

Please notice on the attached drawing that this box tapers as it goes up. You will need to make sure that the narrowest point will fit your installation.

Rules for shipping this size of a box have changed early 2026 and it now costs much more to ship this and may require to be delivered by truck instead of UPS or FedEx. Prices are different for residential and commercial addresses.

If you want to check pricing for shipping one or more enclosures please call 801-355-6736 before ordering

For more than one enclosure please call us to place the order to get accurate shipping.

Please call us if you have questions regarding options (insulated/heated, insulated, non insulated).

This would ship direct from Dekorra to you.

SHIPPING IS FOR CONTIGUOUS UNITED STATES ONLY! HAWAII AND ALASKA WOULD BE AN ADDITIONAL SHIPPING COST.

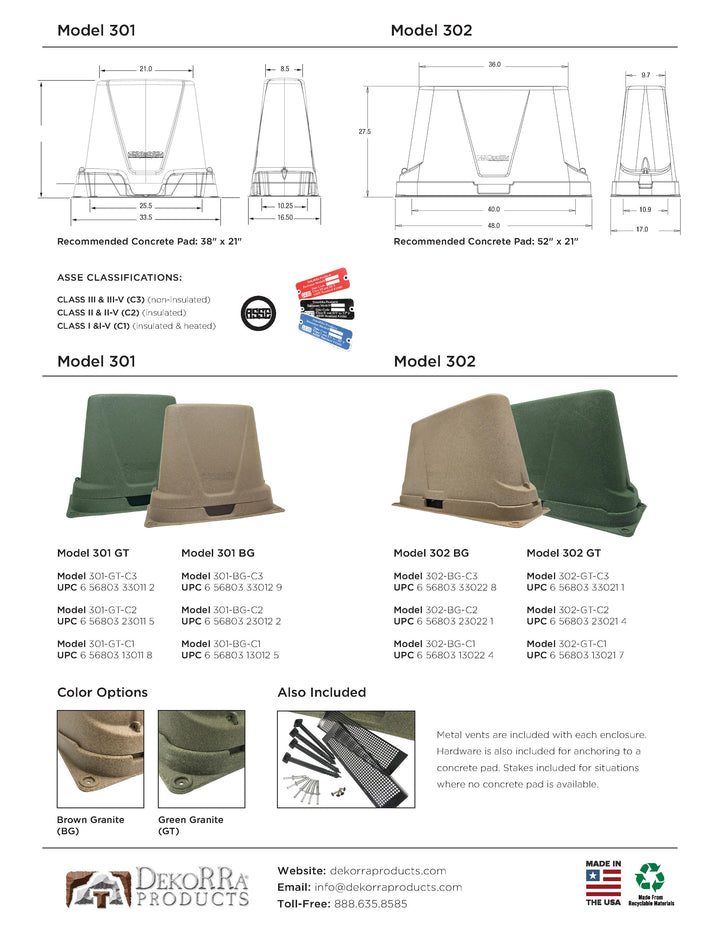

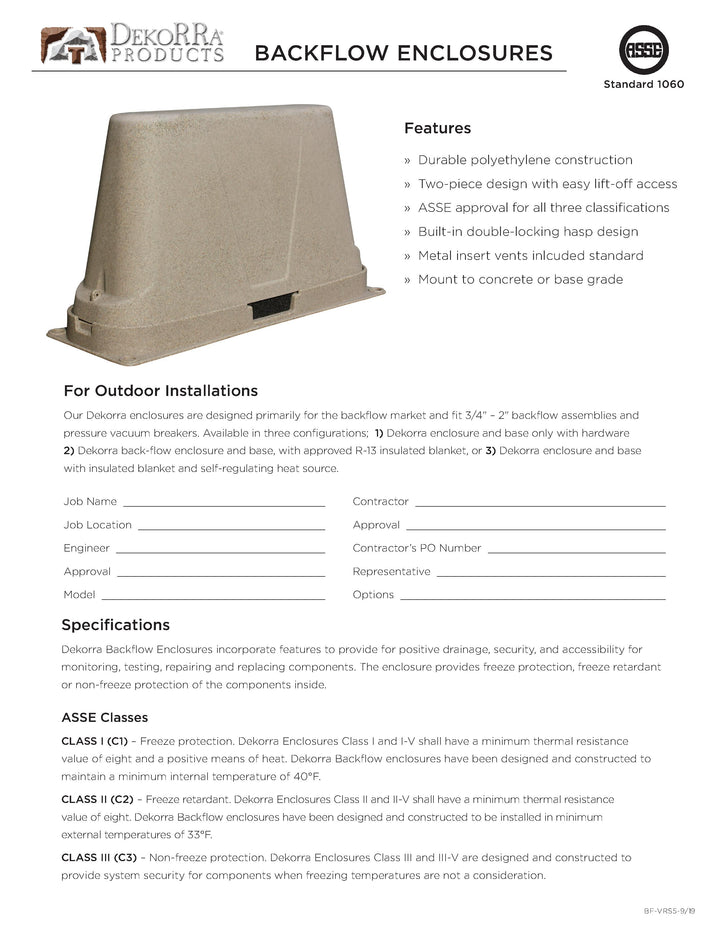

Model 302 Dimension 48"L x 17"W x 27.5"H (see spec sheet in the pictures)

ASSE approval
Two-piece lift off design

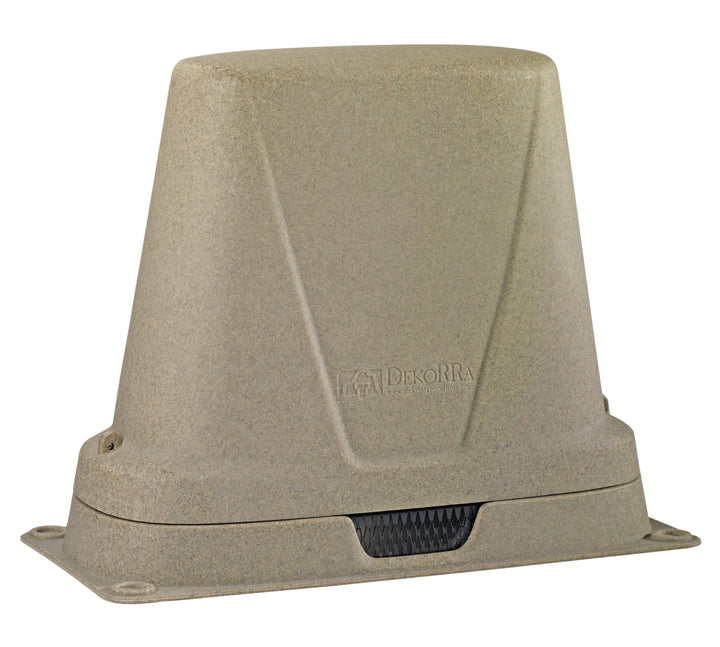

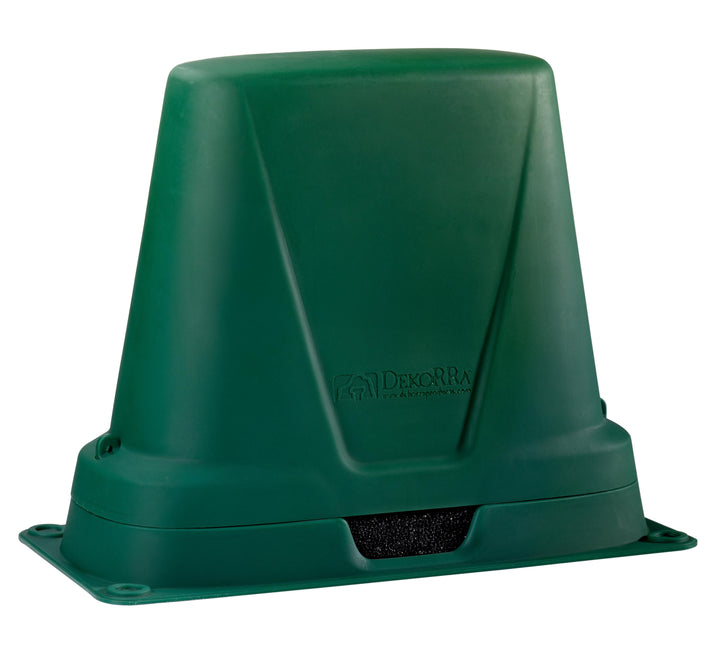

Available in brown granite or green turf
Durable polyethylene construction
Built in double locking hasp

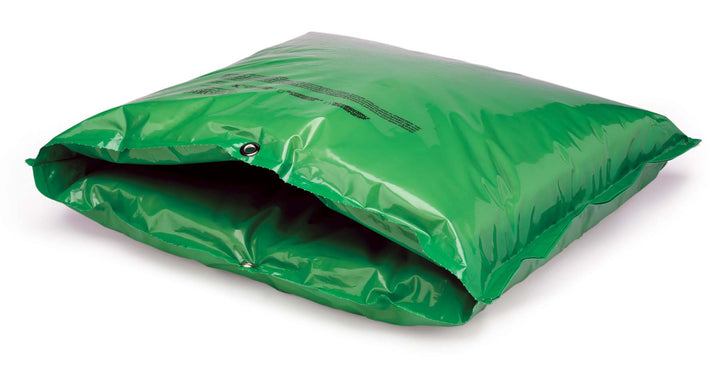

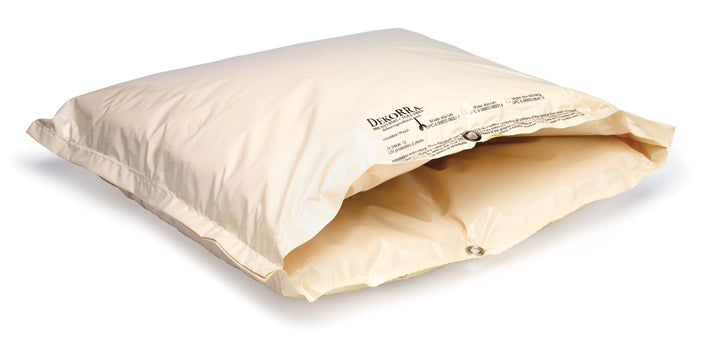

Can be ordered just as a cover (no insulation), with insulation (pouch), insulated and heated.

Comes in two different colors Brown Granite (BG) or Green Granite (GT)

CLASS I (C1) - Freeze protection. Dekorra Enclosures Class I shall have a minimum thermal resistance value of eight and a positive means of heat. Dekorra Backflow enclosures have been designed and constructed to maintain a minimum internal temperature of 40°F. This is the cover, the insulation bag and the heat cable

CLASS II (C2) – Freeze retardant. Dekorra Enclosures Class II shall have a minimum thermal resistance value of eight. Dekorra Backflow enclosures have been designed and constructed to be installed in minimum external temperatures of 33°F. If you are going to be colder than 33°F then you will want to get the Class 1 that has the cover, the insulation bag and the heat cable.

CLASS III (C3) – Non-freeze protection. Dekorra Enclosures Class III are designed and constructed to provide system security for components when freezing temperatures are not a consideration. This is just the cover. No insulation bag! No heat cable!

Quantity

Maintenance Sheets

[{"id":912846290971,"title":"302-BG-C1 48\"L x 17\"W x 27.5\"H","option1":"302-BG-C1 48\"L x 17\"W x 27.5\"H","option2":null,"option3":null,"sku":"DekoRRa Enclosure 302    48\"L x 17\"W x 2-302-B","requires_shipping":true,"taxable":true,"featured_image":{"id":30910526423225,"product_id":90027393051,"position":11,"created_at":"2021-10-28T15:37:02-06:00","updated_at":"2021-10-28T15:37:02-06:00","alt":null,"width":3882,"height":3491,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301BGp_c90d870a-a627-4c25-a181-f091e2bb675e.jpg?v=1635457022","variant_ids":[912846290971]},"available":true,"name":"DekoRRa Enclosure  Model 302 48\"L x 17\"W x 27.5\"H - 302-BG-C1 48\"L x 17\"W x 27.5\"H","public_title":"302-BG-C1 48\"L x 17\"W x 27.5\"H","options":["302-BG-C1 48\"L x 17\"W x 27.5\"H"],"price":52500,"weight":27669,"compare_at_price":95600,"inventory_quantity":-29,"inventory_management":null,"inventory_policy":"continue","barcode":"","featured_media":{"alt":null,"id":23214794145977,"position":11,"preview_image":{"aspect_ratio":1.112,"height":3491,"width":3882,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301BGp_c90d870a-a627-4c25-a181-f091e2bb675e.jpg?v=1635457022"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":912846323739,"title":"302-BG-C2 48\"L x 17\"W x 27.5\"H","option1":"302-BG-C2 48\"L x 17\"W x 27.5\"H","option2":null,"option3":null,"sku":"DekoRRa Enclosure 302    48\"L x 17\"W x 2-302-6","requires_shipping":true,"taxable":true,"featured_image":{"id":30910530584761,"product_id":90027393051,"position":12,"created_at":"2021-10-28T15:37:15-06:00","updated_at":"2021-10-28T15:37:15-06:00","alt":null,"width":3882,"height":3491,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301BGp_fa6e9372-4544-4571-8fd8-67abcd98bf2d.jpg?v=1635457035","variant_ids":[912846323739]},"available":true,"name":"DekoRRa Enclosure  Model 302 48\"L x 17\"W x 27.5\"H - 302-BG-C2 48\"L x 17\"W x 27.5\"H","public_title":"302-BG-C2 48\"L x 17\"W x 27.5\"H","options":["302-BG-C2 48\"L x 17\"W x 27.5\"H"],"price":43600,"weight":27669,"compare_at_price":78000,"inventory_quantity":-15,"inventory_management":null,"inventory_policy":"continue","barcode":"","featured_media":{"alt":null,"id":23214798340281,"position":12,"preview_image":{"aspect_ratio":1.112,"height":3491,"width":3882,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301BGp_fa6e9372-4544-4571-8fd8-67abcd98bf2d.jpg?v=1635457035"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":912846356507,"title":"302-BG-C3 48\"L x 17\"W x 27.5\"H","option1":"302-BG-C3 48\"L x 17\"W x 27.5\"H","option2":null,"option3":null,"sku":"DekoRRa Enclosure 302    48\"L x 17\"W x 2-302-2","requires_shipping":true,"taxable":true,"featured_image":{"id":30910536122553,"product_id":90027393051,"position":13,"created_at":"2021-10-28T15:37:33-06:00","updated_at":"2021-10-28T15:37:33-06:00","alt":null,"width":3882,"height":3491,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301BGp_fe657c6a-a155-4ed9-81c2-8359951ef3f2.jpg?v=1635457053","variant_ids":[912846356507]},"available":true,"name":"DekoRRa Enclosure  Model 302 48\"L x 17\"W x 27.5\"H - 302-BG-C3 48\"L x 17\"W x 27.5\"H","public_title":"302-BG-C3 48\"L x 17\"W x 27.5\"H","options":["302-BG-C3 48\"L x 17\"W x 27.5\"H"],"price":37800,"weight":27669,"compare_at_price":64100,"inventory_quantity":-16,"inventory_management":null,"inventory_policy":"continue","barcode":"","featured_media":{"alt":null,"id":23214803910841,"position":13,"preview_image":{"aspect_ratio":1.112,"height":3491,"width":3882,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301BGp_fe657c6a-a155-4ed9-81c2-8359951ef3f2.jpg?v=1635457053"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":912846389275,"title":"302-GT-C1 48\"L x 17\"W x 27.5\"H","option1":"302-GT-C1 48\"L x 17\"W x 27.5\"H","option2":null,"option3":null,"sku":"DekoRRa Enclosure 302    48\"L x 17\"W x 2-302-G","requires_shipping":true,"taxable":true,"featured_image":{"id":30910542119097,"product_id":90027393051,"position":14,"created_at":"2021-10-28T15:37:48-06:00","updated_at":"2021-10-28T15:37:48-06:00","alt":null,"width":3882,"height":3491,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301GTp_7fe400e8-7b53-4fdf-be24-ec505a8677de.jpg?v=1635457068","variant_ids":[912846389275]},"available":true,"name":"DekoRRa Enclosure  Model 302 48\"L x 17\"W x 27.5\"H - 302-GT-C1 48\"L x 17\"W x 27.5\"H","public_title":"302-GT-C1 48\"L x 17\"W x 27.5\"H","options":["302-GT-C1 48\"L x 17\"W x 27.5\"H"],"price":52500,"weight":27669,"compare_at_price":95600,"inventory_quantity":-3,"inventory_management":null,"inventory_policy":"continue","barcode":"","featured_media":{"alt":null,"id":23214809940153,"position":14,"preview_image":{"aspect_ratio":1.112,"height":3491,"width":3882,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301GTp_7fe400e8-7b53-4fdf-be24-ec505a8677de.jpg?v=1635457068"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":912846422043,"title":"302-GT-C2 48\"L x 17\"W x 27.5\"H","option1":"302-GT-C2 48\"L x 17\"W x 27.5\"H","option2":null,"option3":null,"sku":"DekoRRa Enclosure 302    48\"L x 17\"W x 2-302-5","requires_shipping":true,"taxable":true,"featured_image":{"id":30910545395897,"product_id":90027393051,"position":15,"created_at":"2021-10-28T15:38:00-06:00","updated_at":"2021-10-28T15:38:00-06:00","alt":null,"width":3882,"height":3491,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301GTp_99d4c97c-2072-408d-9b04-e83b5d314679.jpg?v=1635457080","variant_ids":[912846422043]},"available":true,"name":"DekoRRa Enclosure  Model 302 48\"L x 17\"W x 27.5\"H - 302-GT-C2 48\"L x 17\"W x 27.5\"H","public_title":"302-GT-C2 48\"L x 17\"W x 27.5\"H","options":["302-GT-C2 48\"L x 17\"W x 27.5\"H"],"price":43600,"weight":27669,"compare_at_price":78000,"inventory_quantity":-11,"inventory_management":null,"inventory_policy":"continue","barcode":"","featured_media":{"alt":null,"id":23214813282489,"position":15,"preview_image":{"aspect_ratio":1.112,"height":3491,"width":3882,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301GTp_99d4c97c-2072-408d-9b04-e83b5d314679.jpg?v=1635457080"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":912846454811,"title":"302-GT-C3 48\"L x 17\"W x 27.5\"H","option1":"302-GT-C3 48\"L x 17\"W x 27.5\"H","option2":null,"option3":null,"sku":"DekoRRa Enclosure 302    48\"L x 17\"W x 2-302-4","requires_shipping":true,"taxable":true,"featured_image":{"id":30910550540473,"product_id":90027393051,"position":16,"created_at":"2021-10-28T15:38:14-06:00","updated_at":"2021-10-28T15:38:14-06:00","alt":null,"width":3882,"height":3491,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301GTp_9e182735-ec75-4ccb-ba9f-166a642ea59b.jpg?v=1635457094","variant_ids":[912846454811]},"available":true,"name":"DekoRRa Enclosure  Model 302 48\"L x 17\"W x 27.5\"H - 302-GT-C3 48\"L x 17\"W x 27.5\"H","public_title":"302-GT-C3 48\"L x 17\"W x 27.5\"H","options":["302-GT-C3 48\"L x 17\"W x 27.5\"H"],"price":37800,"weight":27669,"compare_at_price":64100,"inventory_quantity":-4,"inventory_management":"shopify","inventory_policy":"continue","barcode":"","featured_media":{"alt":null,"id":23214818459833,"position":16,"preview_image":{"aspect_ratio":1.112,"height":3491,"width":3882,"src":"\/\/backflow-supply.com\/cdn\/shop\/products\/301GTp_9e182735-ec75-4ccb-ba9f-166a642ea59b.jpg?v=1635457094"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Read Before Checking Out!

DekoRRa Enclosure Model 302 48"L x 17"W x 27.5"H

Please notice on the attached drawing that this box tapers as it goes up. You will need to make sure that the narrowest point will fit your installation.
