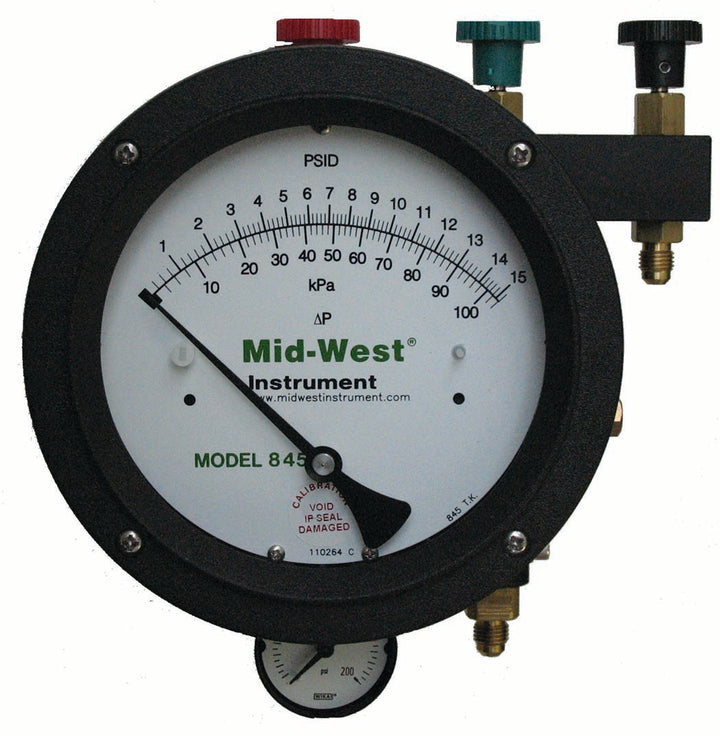

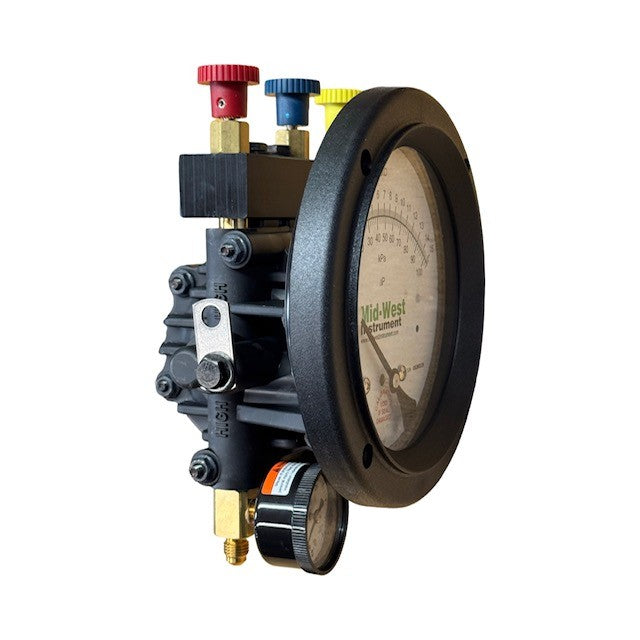

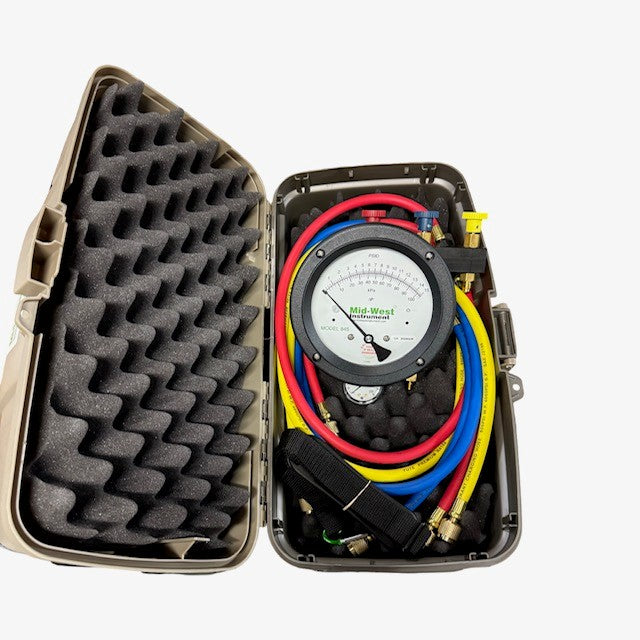

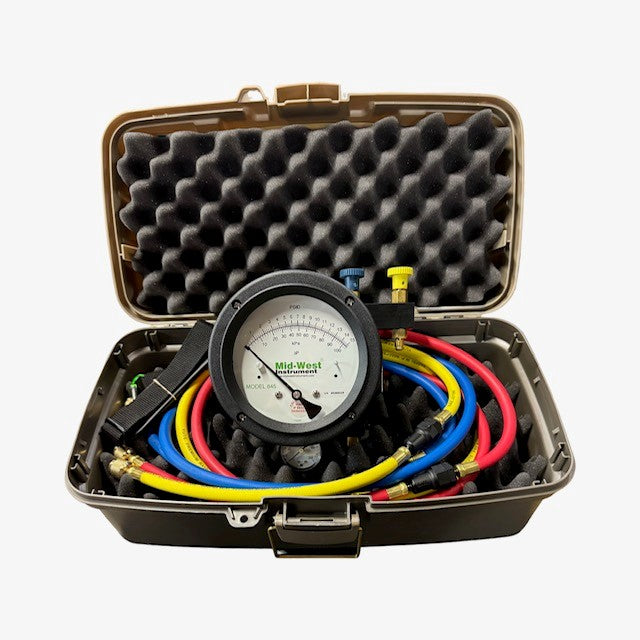

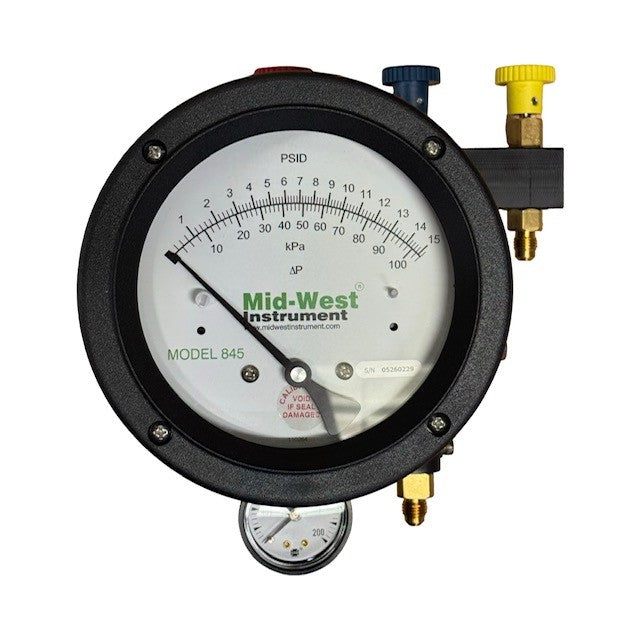

Mid-West 845-3 Backflow Test Kit

MODEL# 835 MID-WEST TEST KIT

This is a kit that I order in as requested.  I do not sell many of these.  Perhaps because it is the same gauge as the 845-5, just mounted in this durable case.

Specifications

• Gauge Type Diaphragm Differential Pressure
• Dial Size & Range (4-1/2") 0-15 PSID / 0-100 KPA
• Differential Pressure Accuracy ± .2 P.S.I.D. (Descending)
• Working Pressure: 200 PSIG
• Body Material: Glass Reinforced Engineering Thermoplastic.
• Wetted Internals: EP Elastomers, Brass and 316 S.S. Metal Parts
• Line Pressure Gauge: 1-1/2" 0-200 PSIG
• Hoses & End Fittings: Buna-N jacket and liner. Schrader 1/4" brass coupler -
• Hose Length: Three (3) each / 5' long (color-coded)
• Bleed Tube, One each / 4' long clear bleed tube
• Adaptor Fittings: (3) sets of brass fittings provided for hookup to all standard size test cocks
• Gauge Weight: 3.6lbs / 1.6kg
• Weight, Gauge & Case combined: 11.6lbs / 5.2kg
• Case: Polyethylene
• Size: 16"H x 14"W x 8-3/4"D
• Temperature Limitations: Maximum 150°F/65°C

       FREEZING TEMPERATURES MUST BE AVOIDED

It is capable of performing all known test procedures including those recommended by ASSE, AWWA, CSA, FCCC and HR-USC and NEWWA.

845-5 Backflow Test kit.

The 845-5 is in the list of Acceptable gages from Both FCCC & HR-USC and CA-NV AWWA

Functions and Applications:
Model 845-5 (5) valve kit provides the capability for testing all brands of reduced pressure principle, pressure vacuum breaker and double check valve backflow prevention assemblies.

∆P RANGE: 0-15 PSID / 0-100 KPA

Product Features/Benefits

• Over 30 Years of Input from Backflow Technicians
• (5) Valve Test Kit
• Specially Designed for Testing Backflow Prevention Assemblies
• Soft-Seated Brass Needle Valves (with replaceable valve seats)
• Test kit is protected with 90 micron filters to minimize plugging with scale, sand, etc. Filter elements can be cleaned or replaced
• Portable / Removable from Case
• Durable Molded Plastic Carrying Case
• Improved Case with Storage Compartments for Fittings & Tools
• Test Procedures are Laminated in Clear Plastic
• 5 Year Warranty

Comes with gauge, hoses with filters (Red, Blue, and Yellow), carrying case, set of MIP adapters (3 of 1/4" adapters, 3 of 1/2" bushings, 3/4" bushings),strap to hang around your neck or over a pipe.

It comes calibrated from the factory, usually no more than 2-4 weeks old but there may be some exceptions.

MID-WEST INSTRUMENT 845-2 VALVE TEST KIT.  TESTS ALL TESTABLE BACKFLOWS.

Comes with gauge, 3 hoses with filters (Red, Blue, Yellow), MIP fittings (3 of 1/4" adapters, 3 of 1/2" bushings, 3 of 3/4" bushings), carrying case, strap to hang gauge around your neck or over a pipe.

Comes calibrated from the factory.  Certificate will be in the case.  Gauge has a 5 year warranty

MODEL# 830  MID-WEST 830 5 VALVE TEST KIT.

THIS IS NOT A TEST KIT THAT I STOCK AS IT IS RARELY REQUESTED ANY MORE.  I DON'T WANT WARRANTY RUNNING DOWN ON THE SHELF SO I ORDER THESE IN AS NEEDED.  IF YOU ARE INTERESTED IN THIS GAUGE PLEASE CALL ME FOR AVAILABILITY AND DELIVERY TIMES.  801-355-6736 OR EMAIL, sean@backflow-supply.com
