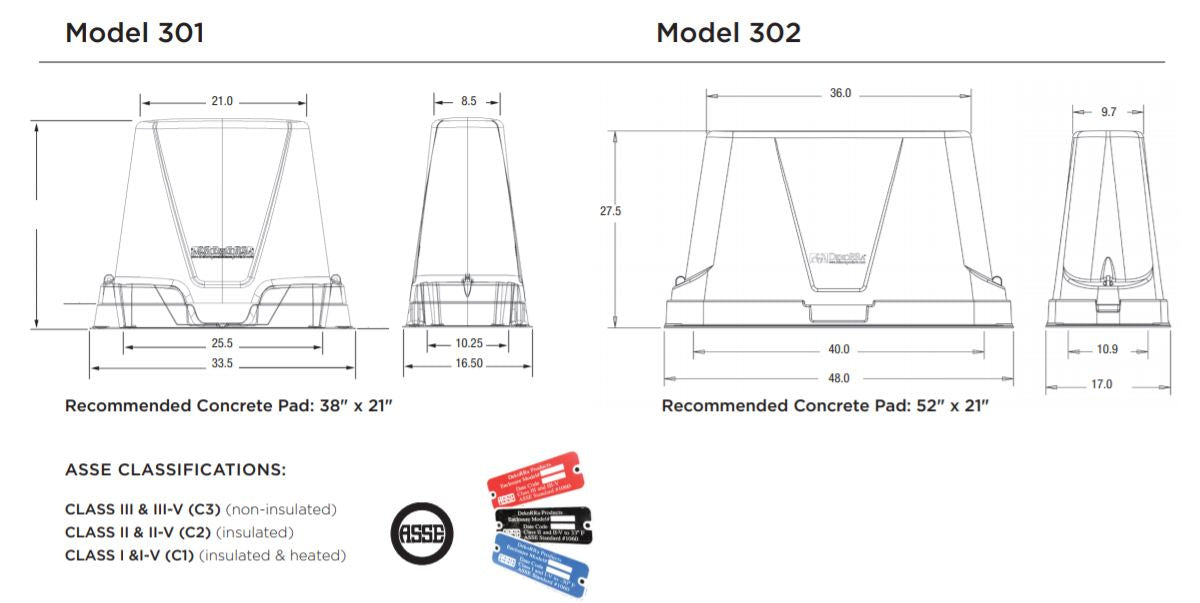

Please notice on the attached drawing that this box tapers as it goes up. You will need to make sure that the narrowest point will fit your installation.
Please call us if you have questions regarding options (insulated/heated, insulated, non insulated).
This would ship direct from Dekorra to you.

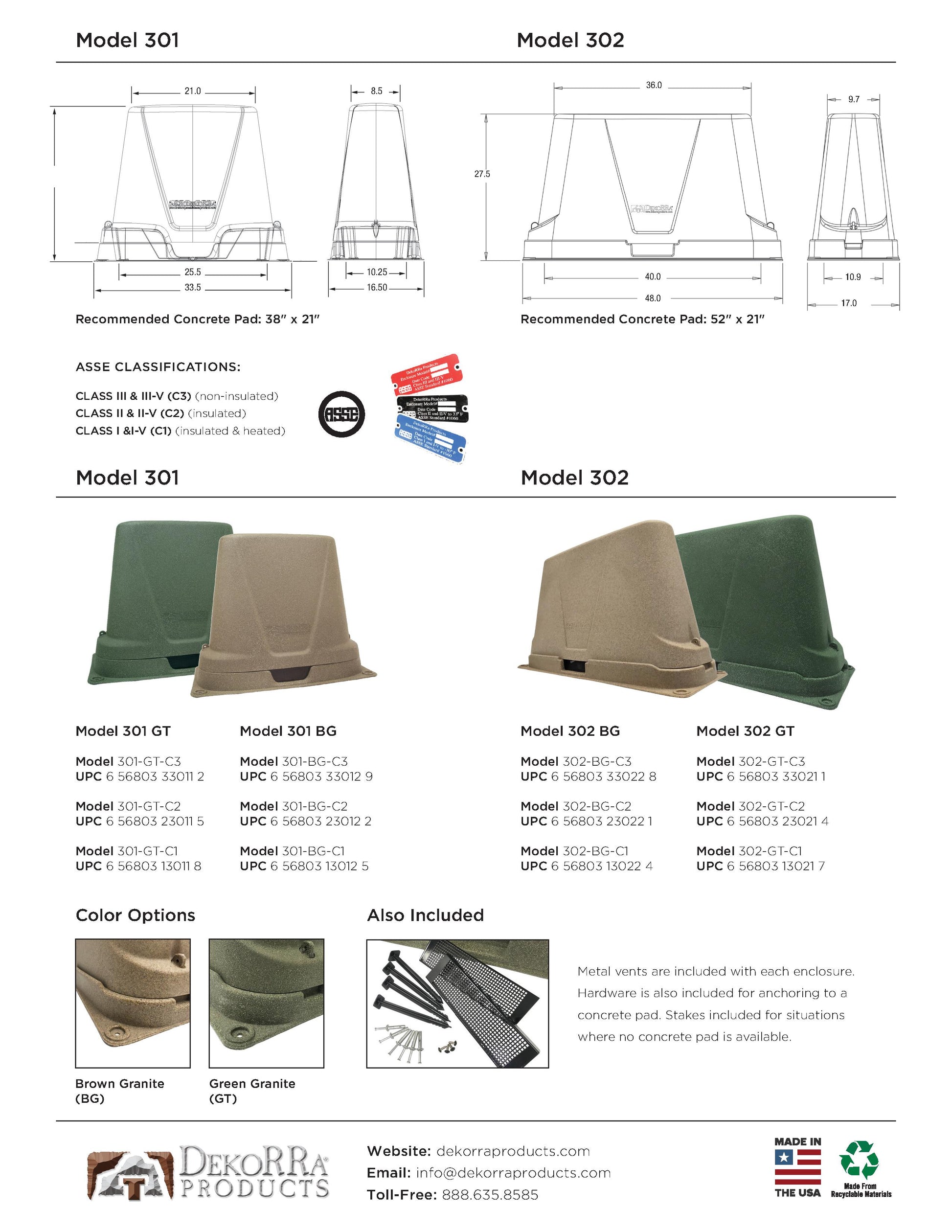

Model 302 Dimension 48"L x 17"W x 27.5"H (see spec sheet in the pictures)
Two-piece lift off design

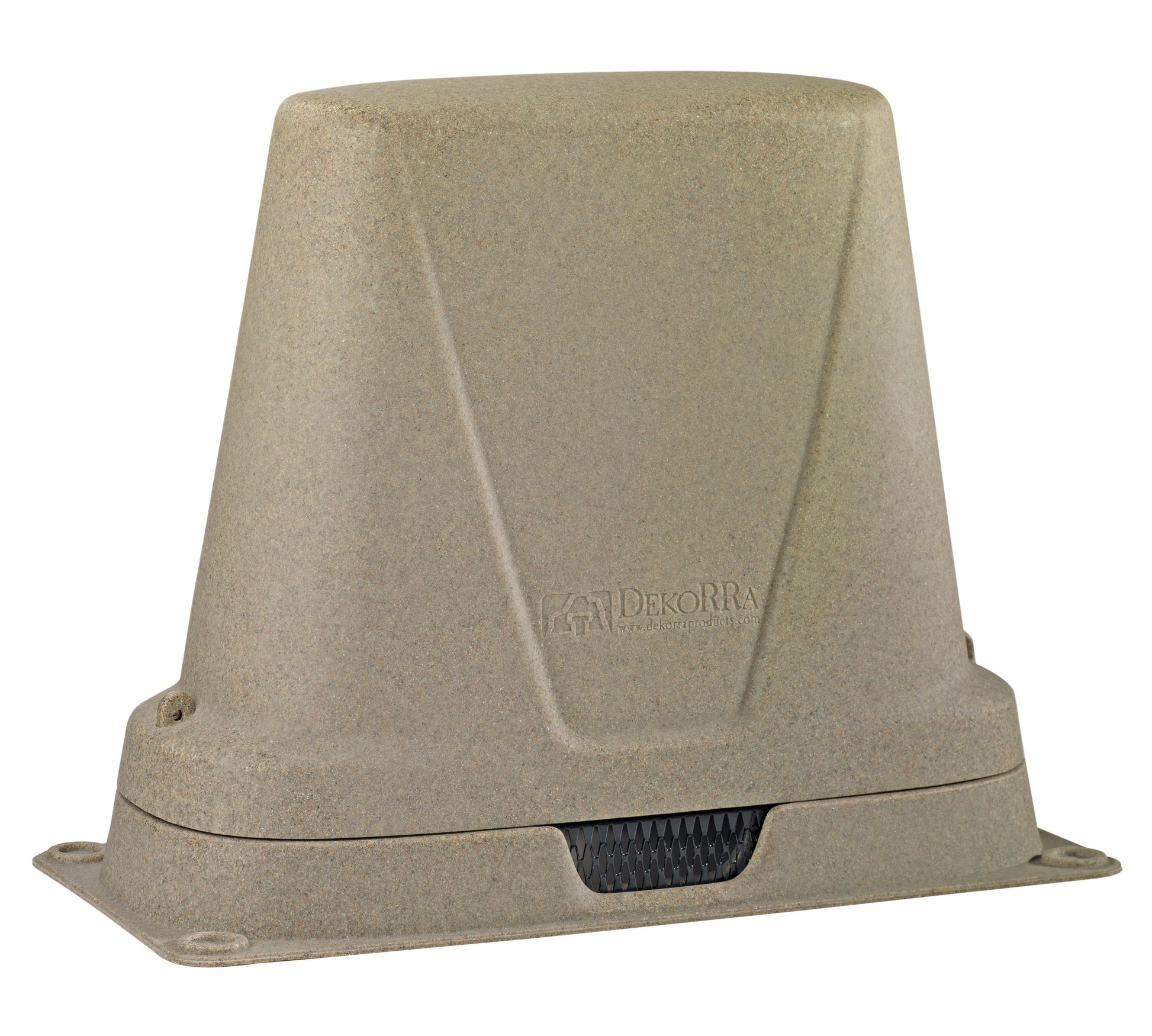

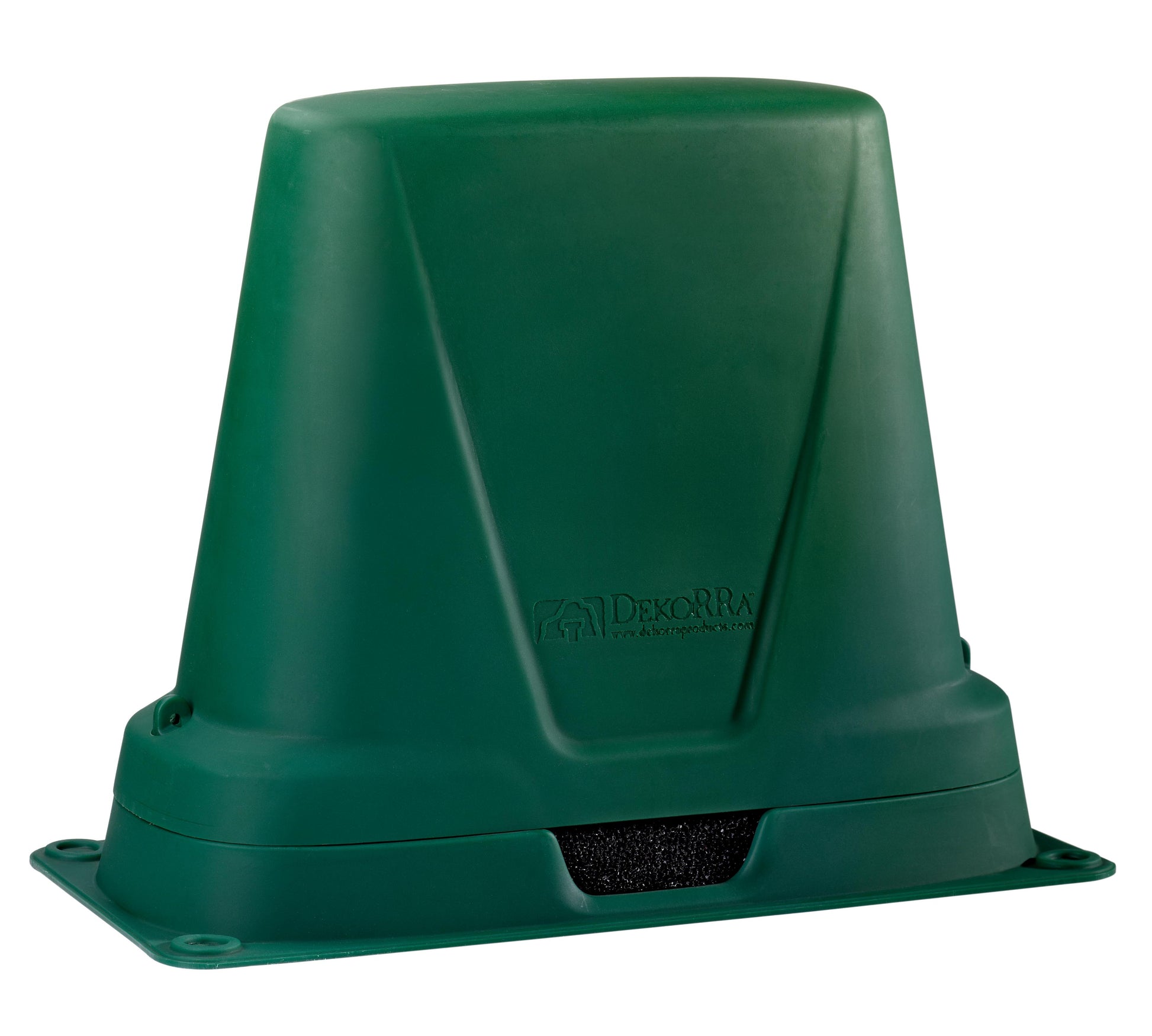

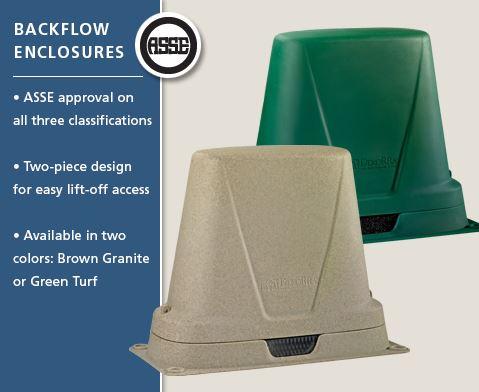

Available in brown granite or green turf
Durable polyethylene construction
Built in double locking hasp

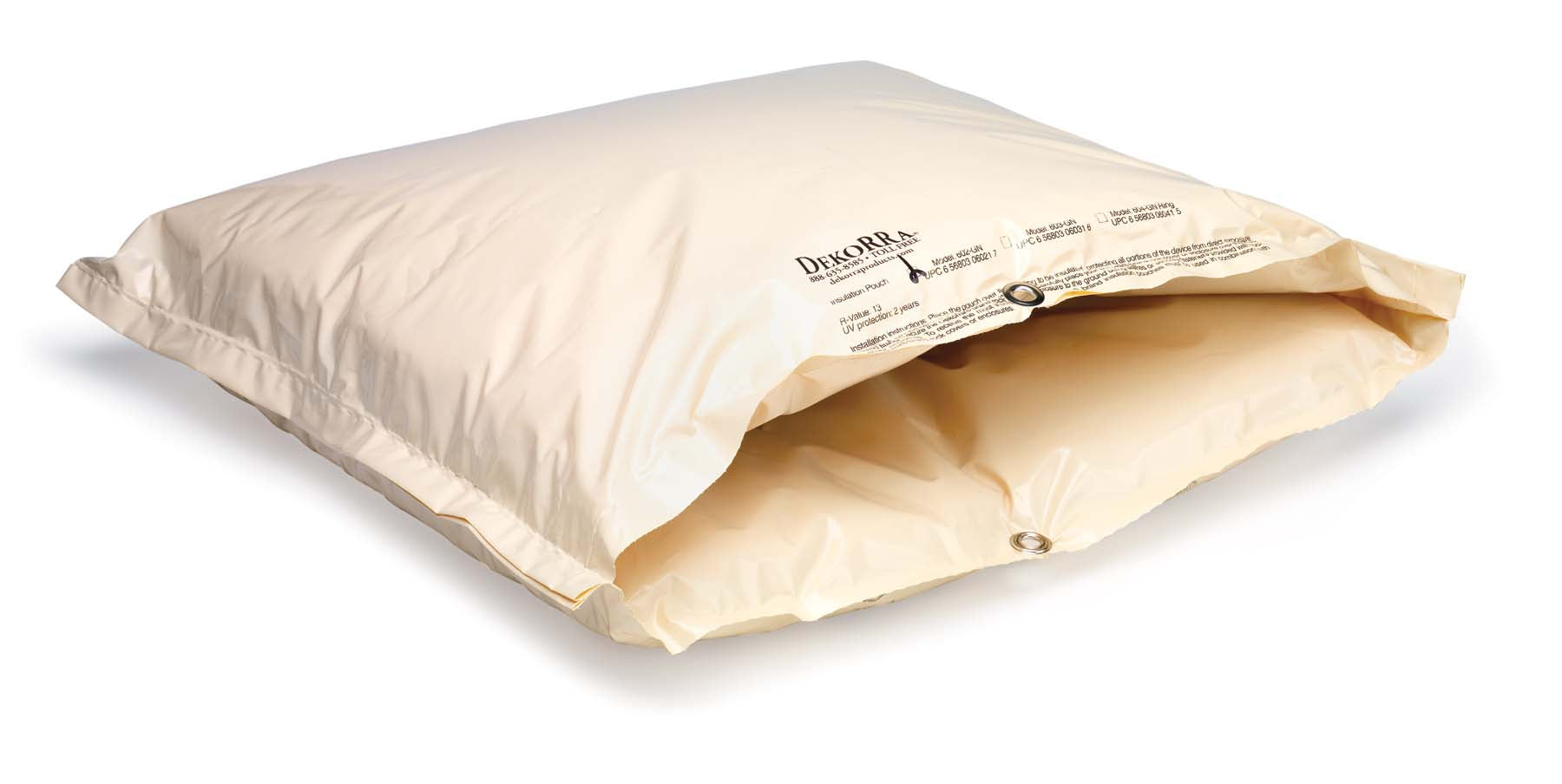

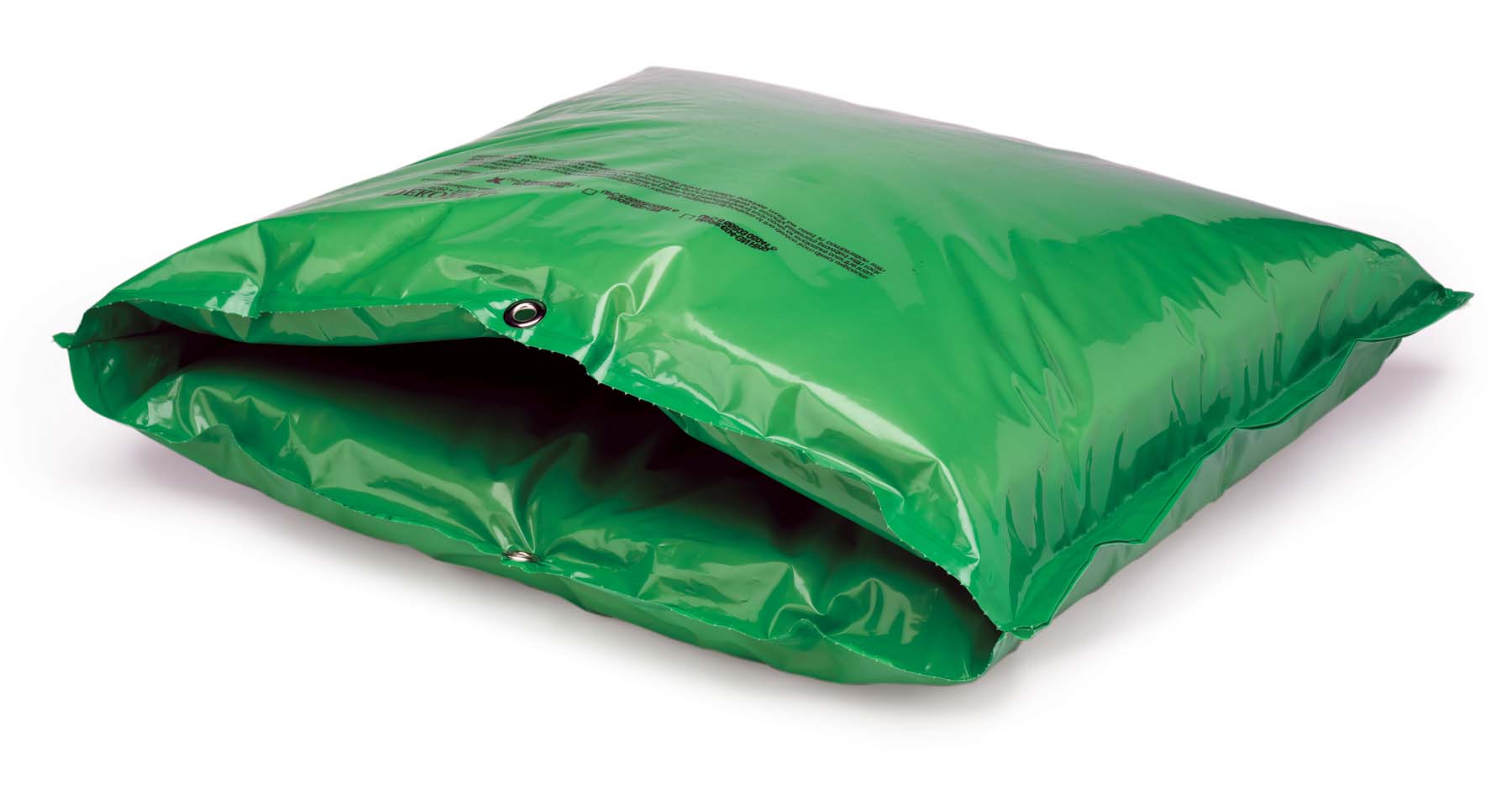

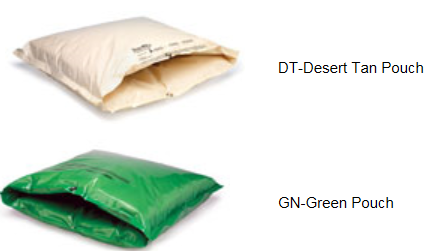

Can be ordered just as a cover (no insulation), with insulation (pouch), insulated and heated.
Comes in two different colors Brown Granite (BG) or Green Turf (GT)

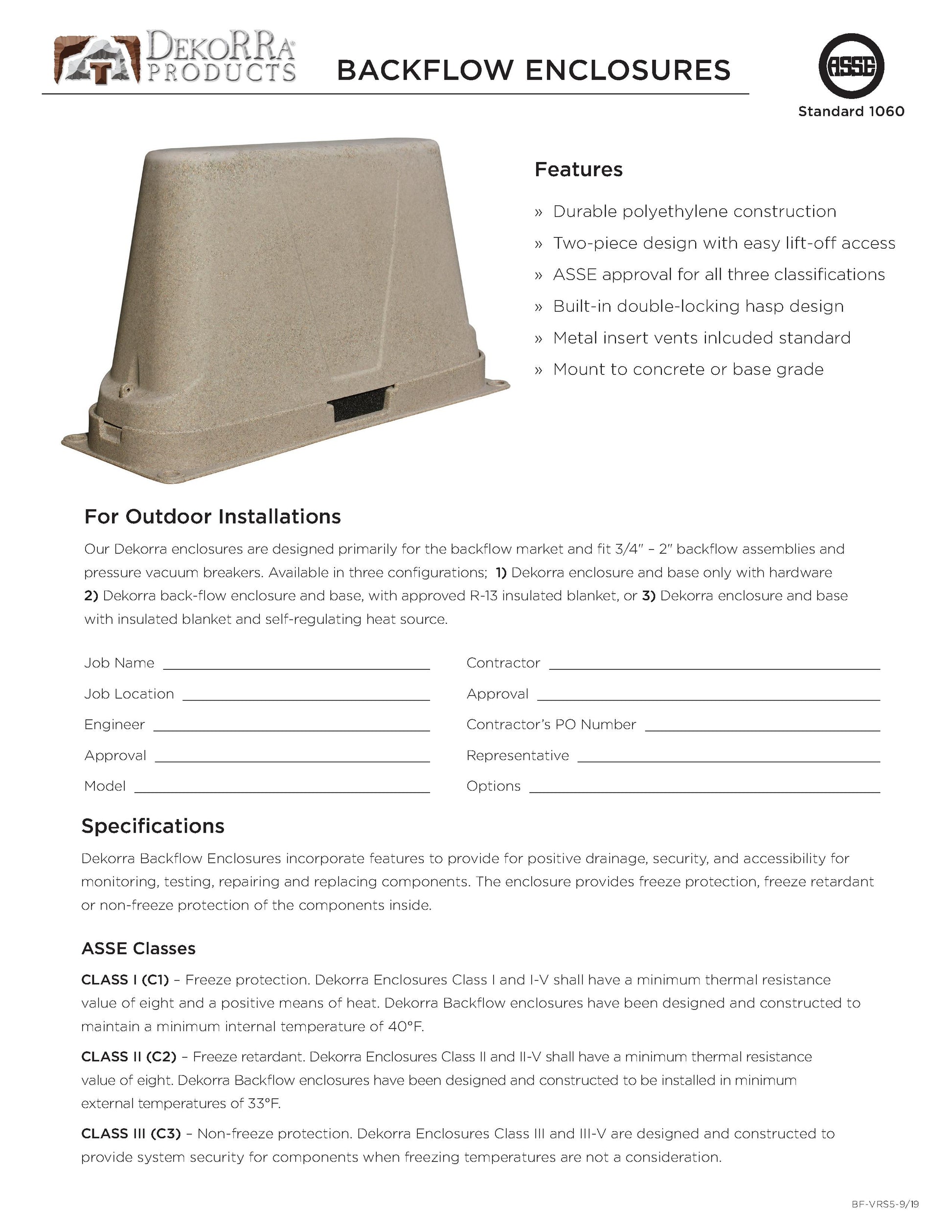

CLASS I (C1) - Freeze protection. Dekorra Enclosures Class I shall have a minimum thermal resistance value of eight and a positive means of heat. Dekorra Backflow enclosures have been designed and constructed to maintain a minimum internal temperature of 40°F.
CLASS II (C2) – Freeze retardant. Dekorra Enclosures Class II shall have a minimum thermal resistance value of eight. Dekorra Backflow enclosures have been designed and constructed to be installed in minimum external temperatures of 33°F.
CLASS III (C3) – Non-freeze protection. Dekorra Enclosures Class III are designed and constructed to provide system security for components when freezing temperatures are not a consideration.
