DekoRRa Enclosure Model 301
DekoRRa Enclosure Model 301
Couldn't load pickup availability

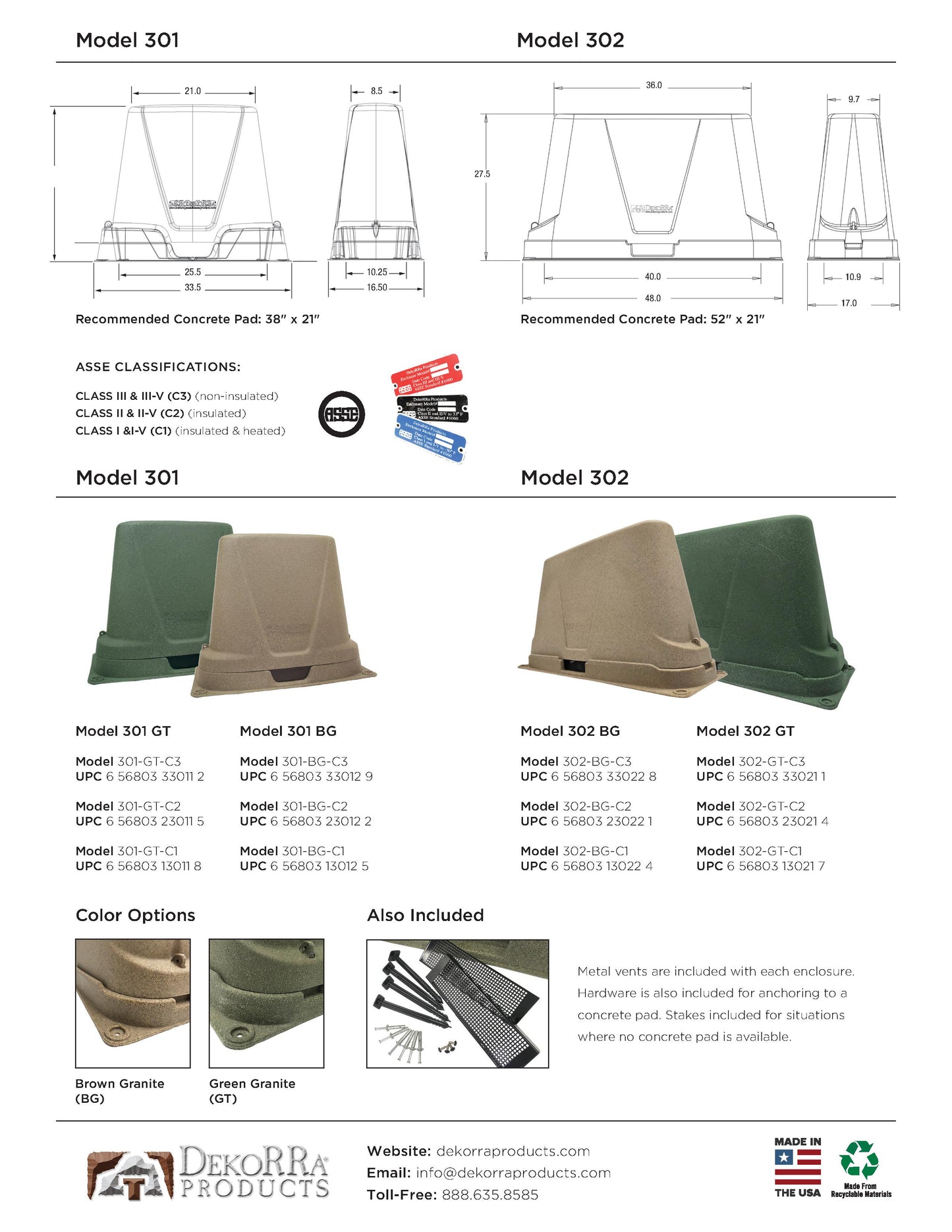

Please notice on the attached drawing that this box tapers as it goes up. You will need to make sure that the narrowest point will fit your installation.
Please call us if you have questions about options on this (not insulated, insulated or insulated and heated.)
This would ship direct from Dekorra to you.

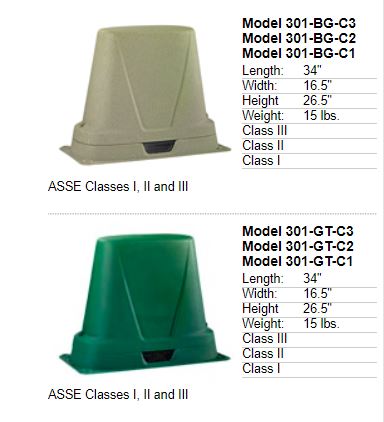

Comes in two different colors Brown Granite (BG) or Green Granite (GT)

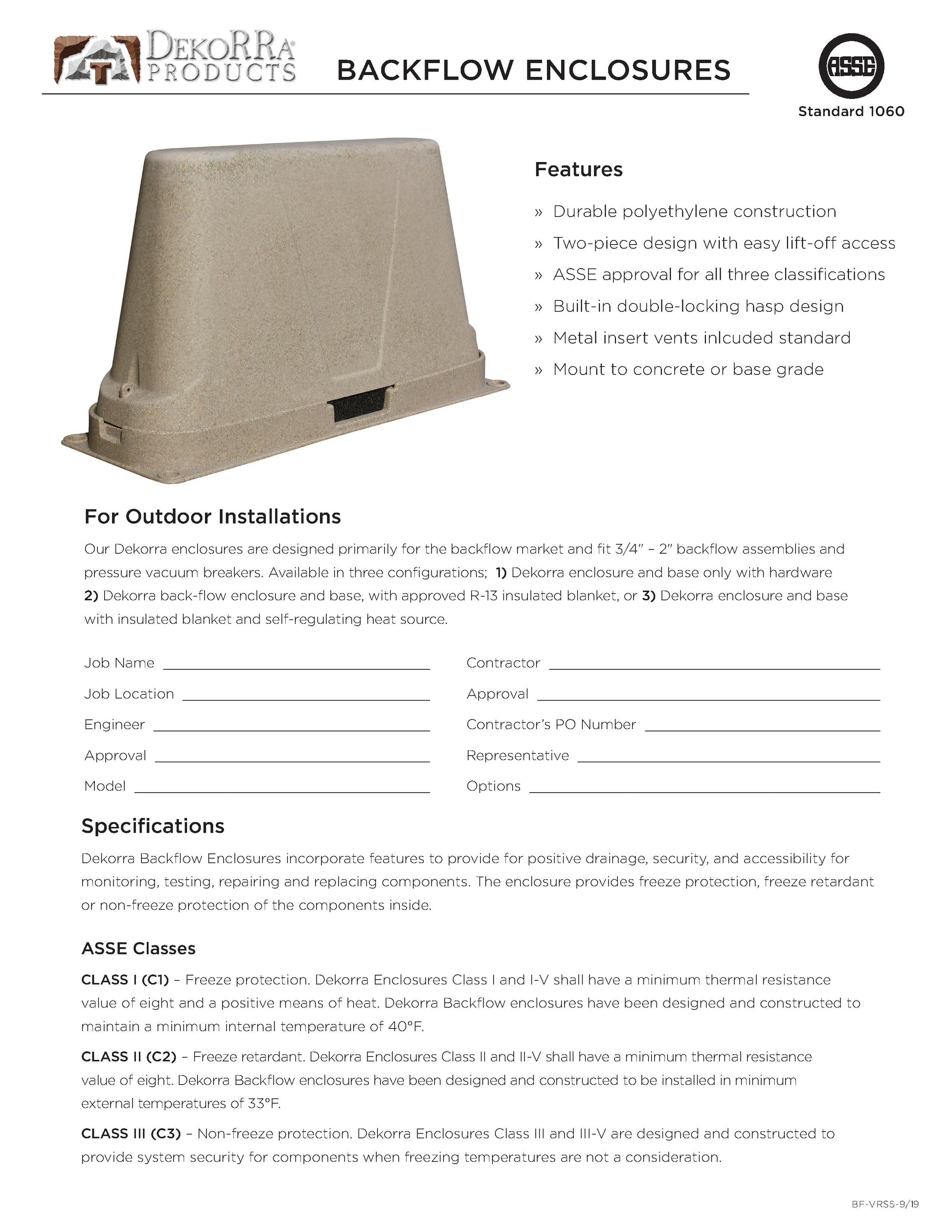

Model 301 dimensions 33 1/2" L x 16 1/4" W x 26.5" H (See attached Spec Sheet)
There are three classes:
CLASS I (C1) - Freeze protection. Dekorra Enclosures Class I shall have a minimum thermal resistance
value of eight and a positive means of heat. Dekorra Backflow enclosures have been designed and constructed to
maintain a minimum internal temperature of 40°F.
CLASS II (C2) – Freeze retardant. Dekorra Enclosures Class II shall have a minimum thermal resistance
value of eight. Dekorra Backflow enclosures have been designed and constructed to be installed in minimum
external temperatures of 33°F.
CLASS III (C3) – Non-freeze protection. Dekorra Enclosures Class III are designed and constructed to
provide system security for components when freezing temperatures are not a consideration.
